Description

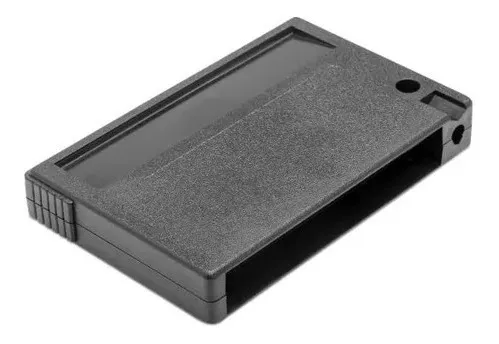

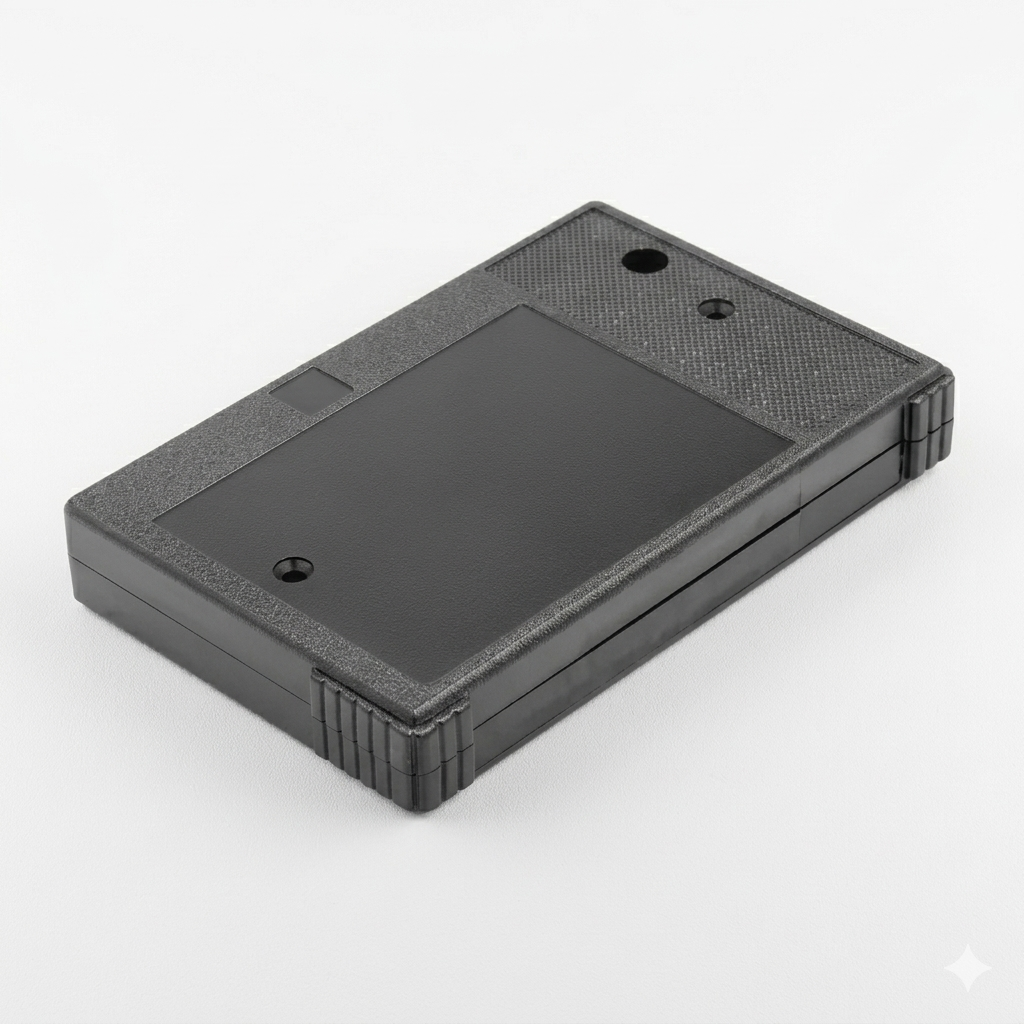

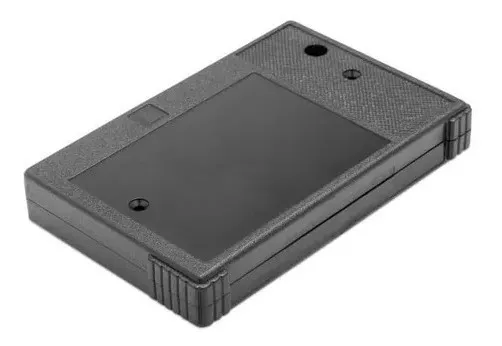

This is a professionally manufactured MSX cartridge case, produced in injection-molded ABS by Patola. This is not a 3D-printed enclosure: it is made using an industrial ABS press process, resulting in a solid, precise, and durable cartridge shell comparable to original commercial MSX cartridges.

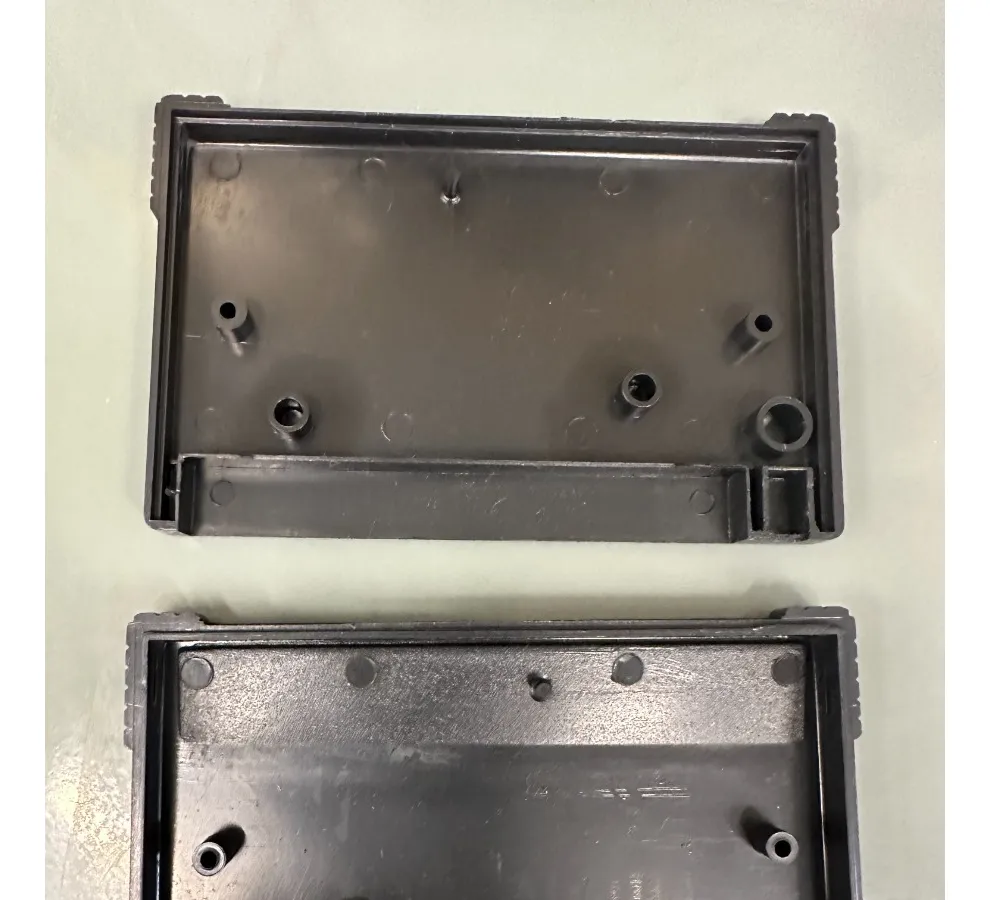

The case follows the classic Konami cartridge form factor and is fully compatible with Konami-style boards, assuming the PCB supports through-hole screws on both sides, as shown in the technical specification image. Screw posts are properly aligned, ensuring a secure and rigid assembly without stressing the PCB.
Key features
-
Material: High-quality injection-molded ABS
-
Manufacturing process: Professional ABS press molding (not 3D printed)
-
Compatibility: Konami-style MSX cartridge boards (with screw holes on both sides)
-
Finish: Clean, professional surface, identical look and feel to original cartridges
-
Color: Black only
-
Hardware included: Screws are included with the cartridge case

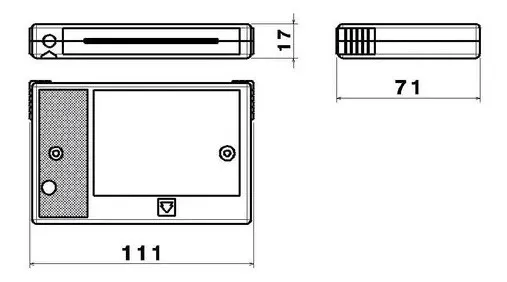

Dimensions (approx.)
-
Width: 111 mm
-
Depth: 71 mm
-
Height: 17 mm
This cartridge case is ideal for restoring old or broken MSX cartridges, building new hardware projects, or giving prototypes and homebrew releases a proper commercial-grade enclosure. It fits perfectly in standard MSX cartridge slots and matches the aesthetics of original MSX software.
